Push Button Switch
Micro Switch Push Button Switch Waterproof Micro Switch Rocker Switch Toggle Switch Slide Switch Indicator Light Other Switch
Detail

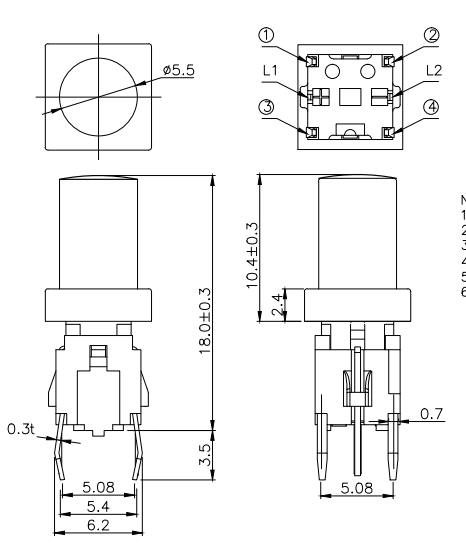

Specification:
Rating: 12VDC 50mA
Contact Resistance:100mΩ Max
Insulation Resistance:100mΩ 250VDC For 1MIN
Dielectric strength: 250VAC (50/60Hz) For 1 MIN
Operating Force: 250±50gf
Total Travel: 0.25±0.1mm
Operating Temperature：-20℃～70℃
Life Cycle: 100,000 Cycle
Function: Momentary
Application:
The light touch switch has the advantages of small contact resistance load, been widely used in electronic equipment, household appliances and so on.
